5271284-3 Collimator Motor - Gold Contact and Coupling Assembly NIB VCT

$875.00
SKU 5271284-3
  • Part Number: 5271284-3
  • Description: VCT Collimator Motor
  • Manufacturer: GE
  • Modality:
  • Model: VCT
  • Price: $900

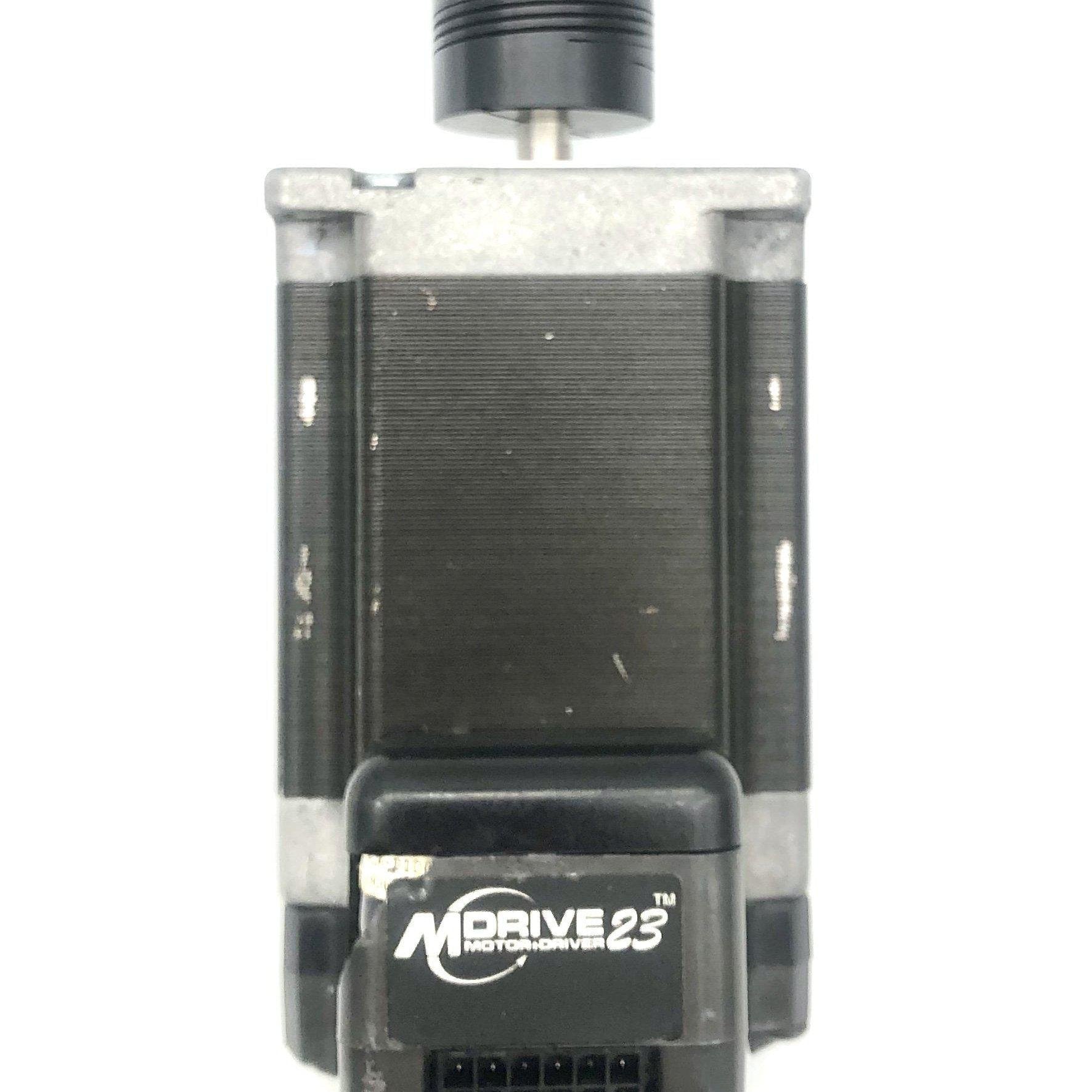

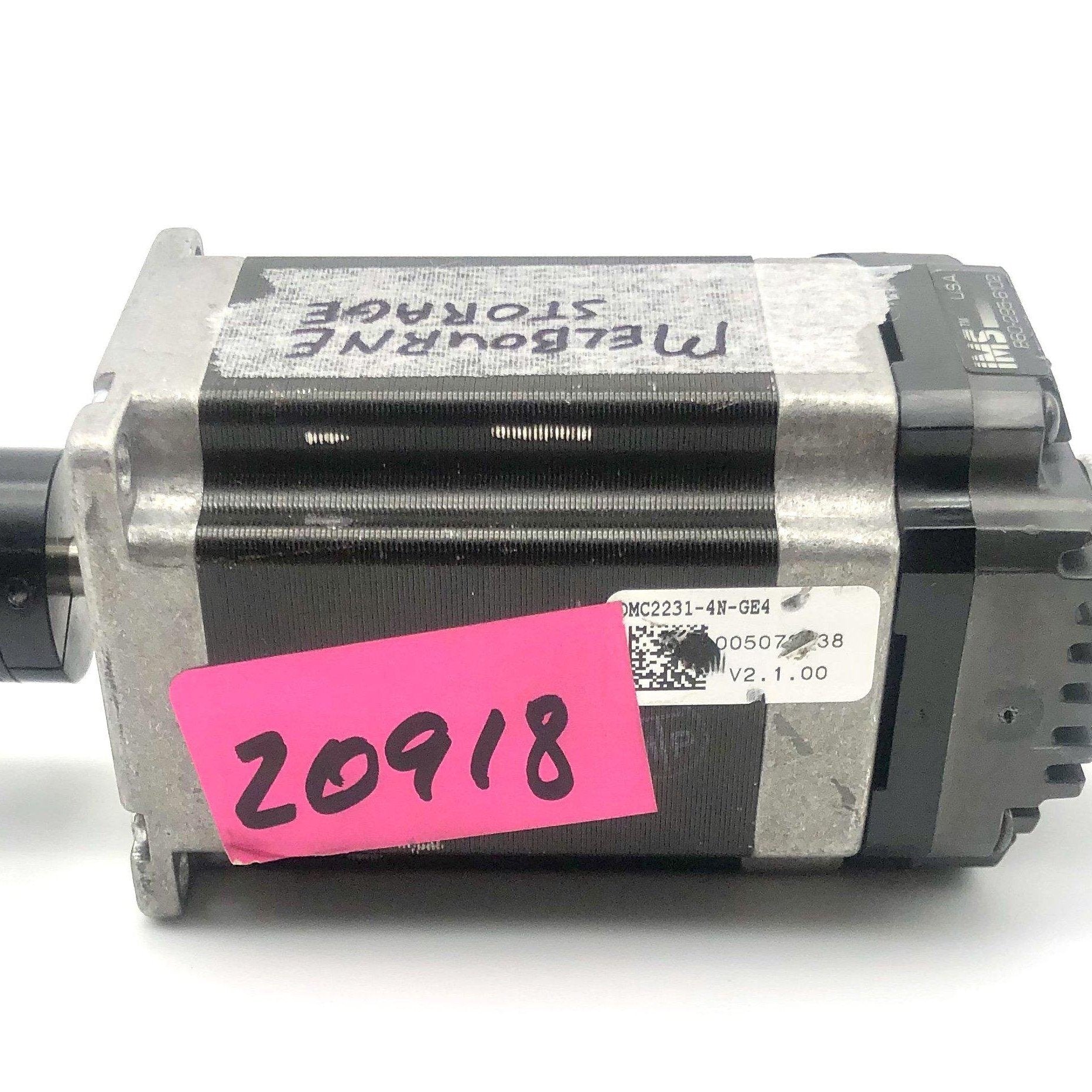

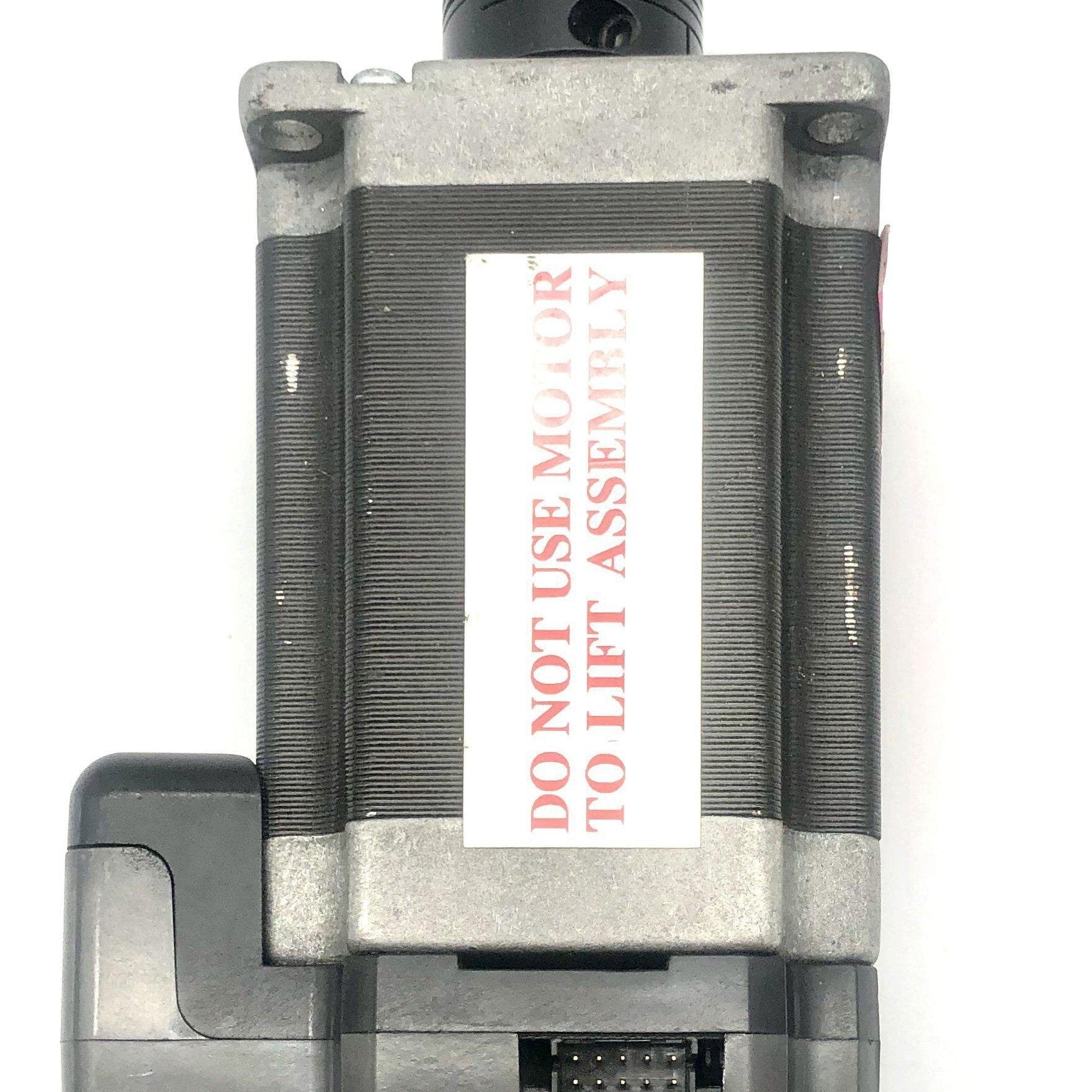

The Collimator Motor - Gold Contact and Coupling Assembly consist of the single piece made aluminum coupling and an MDrive23Plus micro-stepping high torque integrated motor. The integrated electronics of the MDrive23Plus eliminates the need to run motor cabling through the machine, reducing the potential for problems due to electrical noise. Due to the innovative techniques used to control the current flowing through the motor, the resonance is significantly dampened over the entire speed range and the audible noise is reduced. The MDrive23Plus is a compact, powerful and inexpensive solution that will reduce design and assembly time for a large range of brushless motor applications. This Mdrive motor connects with DS (Double Start) series beam couplings are low inertia, high-performance coupling that utilizes a helical double start technology. The DS series coupling is used for optimized motion control systems. This series contains two helical beams (double start) with two separate HELI-CAL Flexures (double flexure), combining greater end-to-end rotational accuracy with radial flexibility in a single design. It uses only integral clamp attachments. This assembly is packed with a 0.25-inch hex bit and a document contains information for coupling replacement and important notes for the VCT collimator cam motor.



  • Additional Features

  • A high-performance motion control system
  • Fast response time
  • High torque capacity
  • Highly integrated micro-stepping driver
  • NEMA 23 high torque brushless motor
  • Advanced 2nd generation current control for exceptional performance and smoothness
  • Automatic current reduction
  • Reduced audible noise
